Traffic Safety Control Highway Barrier Road Traffic Guard Rail Steel Beam Guardrail Spacer W

500 Pieces
MOQ
Traffic Safety Control Highway Barrier Road Traffic Guard Rail Steel Beam Guardrail Spacer W
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Highway Guardrail
Material: Q235 Q345
Type: W-beam Highway Guardrail
Surface Treatment: Galvanized + Powder Coated
Usage: Traffic Safety Control
Thickness: 2.52.6/3.0/2.75/3.1/3.75mm
Plate Length: 4.32/2.32/3.32m
Post Length: 1.1/1.2/1.3/1.4m
Basic Infomation
Payment & Shipping Terms
Packaging Details: Inner Packing profile rail linear guides in plastic bag, Out packing Linear guide way in wooden box.
Supply Ability: 35000 Ton/Tons per Month
Product Description
Product Description
highway fence barrier highway road safety steel guard rail w beam guardrail spacer

The highway corrugated guardrail is the main form of semi-rigid guardrail. It is a continuous structure with corrugated steel guardrails spliced with each other and supported by columns.It uses the deformation of soil foundations, columns, and beams to absorb collision energy, and forces out-of-control vehicles to change directions and return to normal driving directions to prevent vehicles from rushing out of the road to protect vehicles and passengers and reduce losses caused by accidents. The highway wave guardrail is both flexible and steel, has a strong ability to absorb collision energy, has a good line of sight guidance function, can be coordinated with the road line shape, and has a beautiful appearance. It can be used on small radius bends and damaged places. Easy to replace.
Specification
Normal Sizes
L:3200/3810/4000/4300/4320× W:306/310/312/380X
Height : 80/82/83/85× Thickness :2.75/3/4mm.
Available in different sizes.
Materail
Q235,Q345
Profile
W beam , Thrie beam
Surfacce treatment
Hot dipped galvanized or plastic sprayed coating
Applicabele Standards
JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway
Guardrail - USA), RAL RG620 (German) or any other International Standards
Base Steel
Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)
The Thickness of Galvanized (Double Sides)
550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request
Features
Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher
security,environmental protection, etc.
Relevant Parts
Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors
MOQ
one 20 feet container
Price Terms
FOB,CFR,CIF
Payment Terms
T/T,L/C at sight
Other special specification as per client's requirement or drawings
Details Images
Raw materials: the Band steel is made of Q235 or Q345

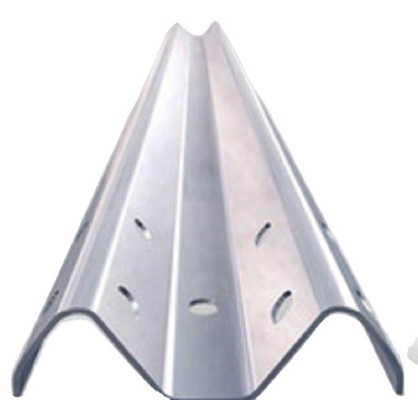

Guardrails plate shape: it can be W-beam and thrie beam, its furface can be hot-dip galvanizing and Powder coating .
it can be straight or curved designed my customers
Guardrails post: it can be round post, square post, C-shape post, flange post. it's length designed by customer, its color designed by customer

Highway guardrails other spare parts, as following:

Guardrails using national high technology and advanced equipment refined
1.strong corrosion resistance
2 many colors to choose
3.easy to install
4.easy to change
5.good anti-collision effect
it is widely used in the followin area: Highway, road tourist attractions.security project, it can realize customers personalized requirement according to various complex topographical features, such as staggered ups and downs. front and back scattered combination of the best connection way
Packing & Delivery
1. 30 pieces per bundle, and then fasten the bundle with wire straps or hemp ropes
2. One 20 feet GP will hold about 510 pieces.
3. Customers' requirements are available, too.
Company Profile
Shandong Yanwu Jinggong Machinery Co., Ltd.is located in East of Wanshan Village, Wanshan Township, Guanxian, Liaocheng City, Shandong Province and the transportation is extremely convenient. We have many years of production and sales experience. We have 2 flat machine tools, 4 groove polishing, 2 punching, 1 calibration equipment, high-speed guardrail galvanizing, plastic spraying,molding, pipe cutting and other equipment, with complete production Service, the annual output value is 100 million yuan, and there are 35 employees. Our company has successively passed ISO9000; 2015 Quality Management System.Certification/IS04001; 2015 Environmental Management System Certification/OHSAS18001;2007 China Occupational Health and Safety Management System Certification and Factory Acceptance Certificate issued by China Communications Engineering Institute. Our company adheres to the "innovation-driven, quality-oriented, market-oriented" business philosophy, with the purpose of excellent service, dedicated to provide the new and old customers with the best quality products and best service.
FAQ
1. Why Choose Us?

We are professional manufacturer and supplier of highway guardrails.

2. Our MOQ ?

25 Metric Tons or one 20ft or 40ft Container.

3. Delivery Time ?

It depends on the quantity you order since we receive your deposit.

4. What kind of payment does your company support ?

T/T, 100% L/C at sight are both accepted.

5. Main market ?

Russia, UK, Mid East, South America, Africa, Southeast Asia etc
